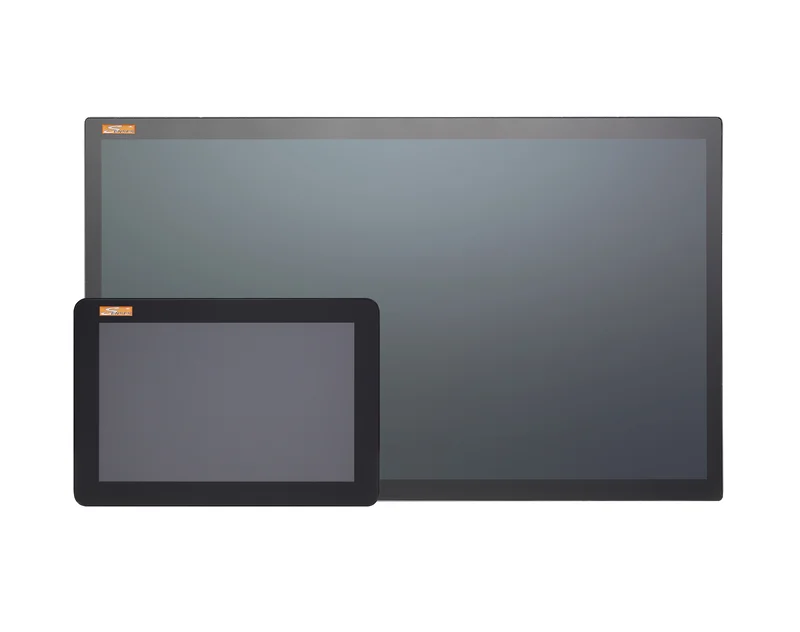

Amplicon Senses 5700 series
10 to 24 inch slim and fanless Panel PC powered by Intel® Apollo Lake Quad core CPU
- Projected Capacitive Multi-Touch (10 points)
- IP65 front panel
- Optional Cellular/Wi-Fi
- Long Life Cycle
The Senses 5700 Industrial Panel PC takes advantage of the Intel® Celeron™ J3455 processor to give you a low power platform with quad core computing performance.
With options for Cellular or wireless the Senses 5700 series is suitable for a range of projects.
Equipped with a high resolution panel and a sleek, responsive, multi-touch screen and an IP65 rated front bezel and true-flat design.
15 year life cycle.
Learn more about the Amplicon Industrial Panel PC range
- Screen Size
- 10.1 inch
- 15.6 inch
- 21.5 inch
- 23.8 inch
- Touch screen
- Projected capacitive touch
- CPU
- Celeron®
- CPU Generation
- Apollo Lake
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Memory
- 4 GB
- Memory Type
- DDR3
- Storage
- 64GB M.2
- Expansion
- mPCIe
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Mounting
- Open frame (optional)
- Panel
- VESA
- senses-roadmap
- Roadmaps 11.27 MB
- Senses-5700-panel-pc
- Datasheet 4.21 MB
Models available (4)
Amplicon Senses 5710 Panel PC
Code 97220976
10.1" Panel PC with Intel Celeron J3455, 4GB RAM, 64GB M.2 SSD
Amplicon Senses 5716 Panel PC
Code 97220977
15.6" panel PC with Intel Celeron J3455, 4GB RAM, 64GB M.2 SSD
Amplicon Senses 5722 Panel PC
Code 97220978
21.5" Panel PC with Intel Celeron J3455, 4GB RAM, 64GB M.2 SSD
Amplicon Senses 5724 Panel PC
Code 97220979
23.8" Panel PC with Intel Celeron J3455, 4GB RAM, 64GB M.2 SSD
