Impact-R 1210F - 97221575

Fanless Iot Edge ready PC with Atom x6425E, 8GB RAM 128GB MLC SSD, 2 x RS232/422/485

  • Intel® Atom™ Elkhart Lake processors
  • Ultra short depth (184.50mm)
  • Up to 32GB DDR4 RAM
  • IoT Edge Ready
  • Up to 10 Serial ports

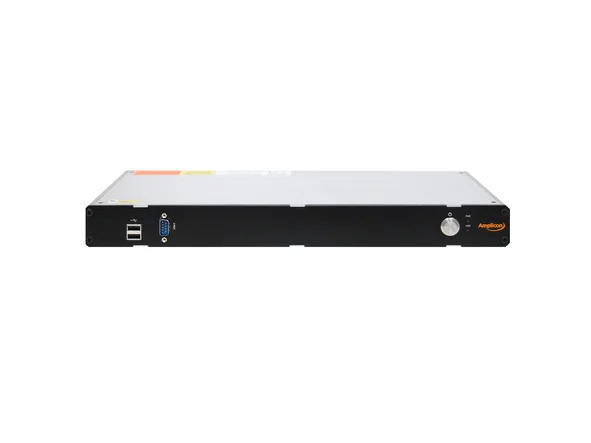

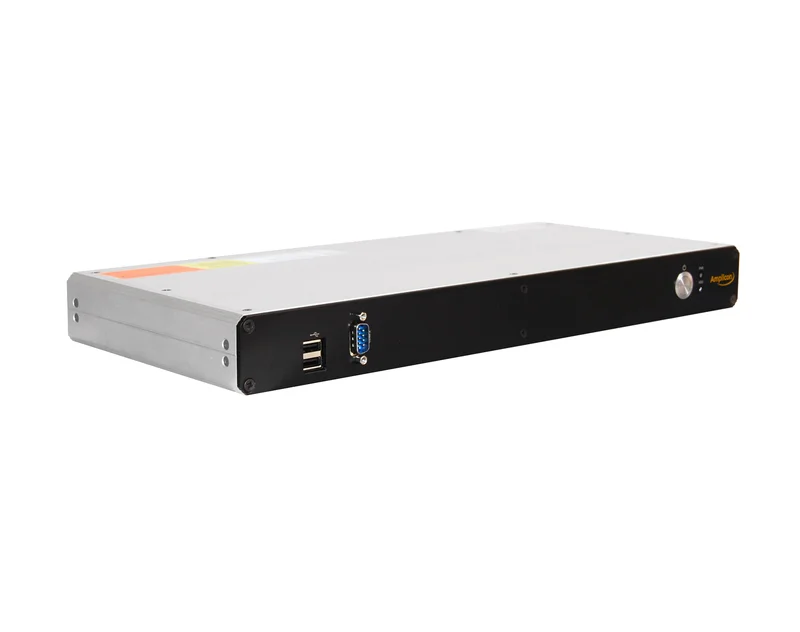

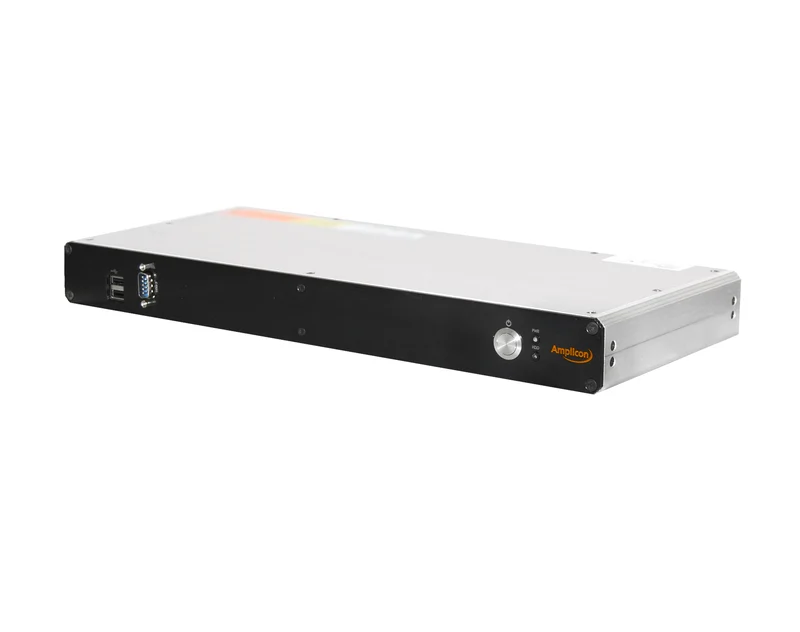

The Amplicon Impact-R 1210F 'IoT edge ready' Industrial PC is an ultra short-depth rack system, completely fanless and powered by the Intel® ATOM™ Elkhart Lake processor.

With an ultra short 184.50mm depth, this industrial PC is ideal for applications requiring a short depth cabinet or where space is a premium allowing you to mount other devices behind the Impact-R 1210F models.

With options for multiple serial communication ports, the Impact-R 1210F can offer up to a total of ten DB9 ports with a mixture of RS232/422 and RS485, allowing for true flexibility as well as legacy support.

Options for cellular and WI-FI gives the Impact-R 1210F series the ability to gather and process data almost anywhere, allowing the implementation of edge technology projects.

The Impact-R rackmount PC utilises industrial components, which provide revision control. Our production processes are controlled under ISO 9001:2015 with every system undergoing a full diagnostic burn-in test prior to shipment.

Learn more about the Amplicon short depth computer range.

Learn more about the Amplicon Industrial Rackmount PC range.

Chassis Size
1 U
CPU
ATOM®
Memory
8 GB
OS Support
Windows 10
Windows 10 IoT
Windows 11
Linux
Expansion
M.2
Storage
128GB SSD
Memory Type
DDR4
CPU Generation
Elkhart Lake
CPU Cores (Physical)
4
Type of Serial Ports
RS-232
RS-422
RS-485
Max Memory
32 GB
Max Operating Temperature
60 °C
Mounting
Rack
Chassis depth
Shallow depth
Brand
Impact-R
Impact-R 1210F Datasheet
Datasheet 954.33 KB
impact-r-roadmap
Roadmaps 181.18 KB
