Impact-E 380 - 97200118
3 x PCIe expansion, 8500T, 4GB DDR4, 128GB SSD Basekit Iss A
- 8th Generation iCore processor
- Wi-Fi connectivity
- Supports up to 32GB DDR4 RAM
- Supports USB 3.0 and SATA III (JBOD, RAID 1/0)
- Supports 2 independant displays (DP++)
- 3 x PCIe expansion slots (1 x PCIe x4 Rev 3, 2 x PCIe x1(x8))
- DC powered (via screw terminal)

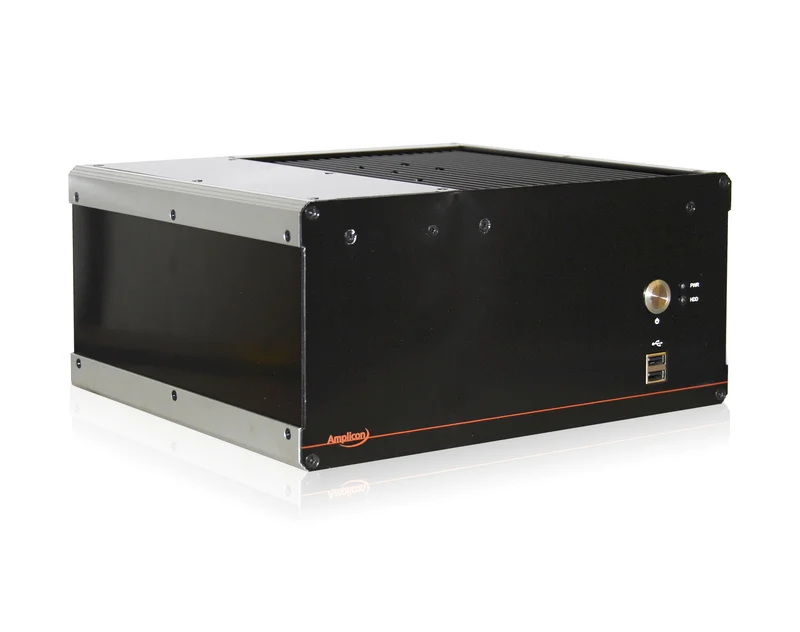

The Amplicon Impact-E 380 fanless embedded PC is available with the Intel® 8th generation iCore processors, memory support includes high bandwidth DDR4 memory.
With three PCIe expansion slots, this system builds on the reliability and stability of the Impact-E 280. Supporting 2 x 2.5" HDD/SSD configured as RAID 1/0, or as single drives with optional expansion for 2 x M.2.
With WI-FI capability this unit alows you to have a powerful PC away from the rest of the network.
The Impact-E 380 embedded PC system is suited to applications in various markets such as transportation, security and automation.
Learn more about the Amplicon Industrial Embedded PC range.
- CPU
- Core i5
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- M.2
- PCIe
- Storage
- 128GB SSD
- Memory Type
- DDR4
- CPU Generation
- 8th (Coffee Lake)
- CPU Cores (Physical)
- 6
- Max Memory
- 32 GB
- Mounting
- Wall
- Brand
- Impact-E
- Impact-E 380 Datasheet
- Datasheet 2.57 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.55 MB
