Impact-E 150AL - 97170973
Impact-E 150AL - Intel® ATOM E3950, 4GB RAM, 32GB SSD embedded PC Base Kit Iss E
- Intel® Atom™ Apollo Lake processors
- Up to 16GB DDR3L Memory
- Dual Monitor Support (DP++ & VGA)
- mPCIe (full length)
- M.2 (B key)
- 15 year life cycle

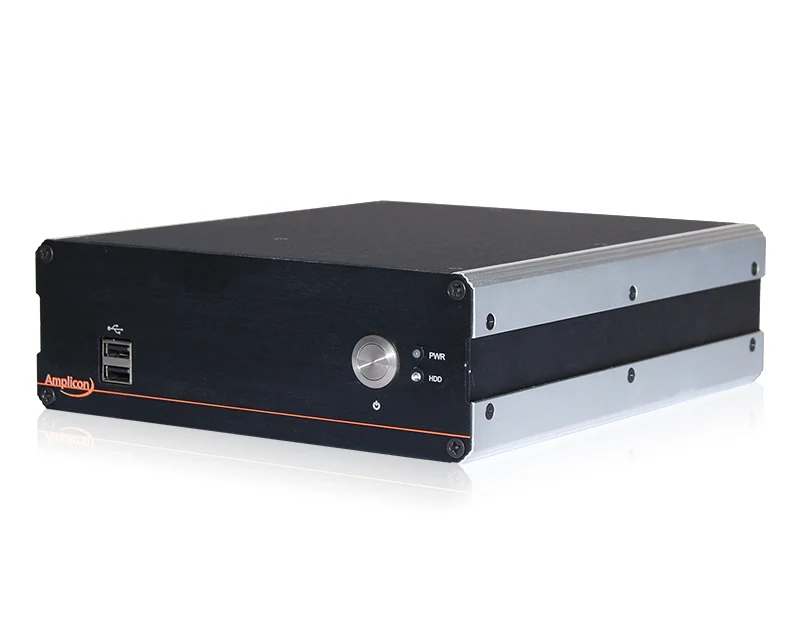

The Amplicon Impact-E 150AL Embedded PC is a completely fanless system powered by the Intel® ATOM™ Apollo Lake processors.
With multiple serial communication ports, the Impact-E 150AL can offer up to a total of six DB9 ports with a mixture of RS232/422 and RS485, allowing for true flexibility as well as legacy support.
The Impact-E series utilises industrial components, which provide revision control. Our production processes are controlled under ISO 9001:2015 with every system undergoing a full diagnostic burn-in test prior to shipment.
15 year life cycle.
360 view available on Amplicon YouTube Channel
Learn more about the Amplicon Industrial Embedded PC range.
- CPU
- ATOM®
- Memory
- 2 GB
- OS Support
- Windows 10
- Windows 10 IoT
- Linux
- Expansion
- M.2
- mPCIe
- Storage
- 32GB SSD
- Memory Type
- DDR3
- CPU Cores (Physical)
- 4
- Max Memory
- 16 GB
- Mounting
- Wall
- DIN Rail
- Brand
- Impact-E
- Impact-E 150AL Datasheet
- Datasheet 1.41 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.55 MB
| Code: 17140883 | Accessory - Impact-E DIN mount kit |
| Code: 91170808 | S/W - Windows 10 IoT Enterprise LTSB 2016 (Entry Level) |
| Code: 91121202 | Impact-RxxxF / Impact-E 15x / NISE101 / OPPC, HPPC and APPC Power Supply |
